Indian Sign Language Translation

A neural-network based system for translating Indian Sign Language using OpenPose keypoints and LSTM.

Indian Sign Language (ISL) translation bridges the gap between the hearing-impaired community and those who don’t know sign.
Our system uses OpenPose to extract body‐ and hand-keypoints from video frames, then feeds the time-series of those points into an LSTM network to produce text translations in real time.

We preprocess each frame’s keypoints into a flat vector and stack them across time to form the network input. The LSTM learns to map these motion patterns to text tokens—for example, translating the sign for “HELLO,” “THANK YOU,” or “WHERE” in real time.

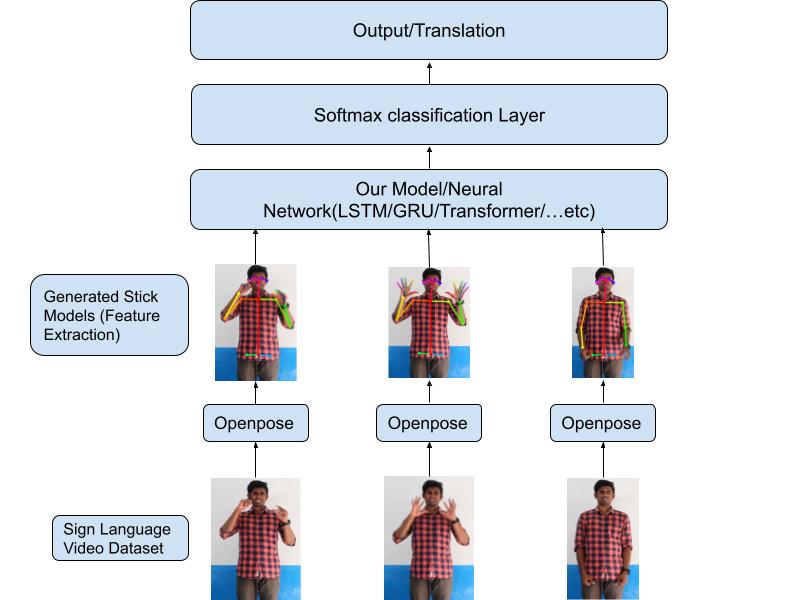

Diagram of the end-to-end pipeline: video frames → keypoint extraction → sequence model → final translation.
Above: successive video frames with body and hand keypoints overlaid. These are the inputs to our LSTM time-series network.

Key Statistics for the dataset is as follows

| Characteristic       |  Details  |
| :------------------- | :-------: |
| Categories           |    15     |
| Words                |    263    |
| Videos               |   4292    |
| Avg Videos per Class |   16.3    |
| Avg Video Length     |   2.57s   |
| Min Video Length     |   1.28s   |
| Max Video Length     |   6.16s   |
| Frame Rate           |  25 fps   |
| Resolution           | 1920x1080 |

Size of each category

Category Number of Classes Number of Videos
Adjectives 59 791
Animals 8 166
Clothes 10 198
Colours 11 222
Days and Time 22 306
Greetings 9 185
Means of Transport 9 186
Objects at Home 27 379
Occupations 16 225
People 26 513
Places 19 399
Pronouns 8 168
Seasons 6 85
Society 23 324
  Categories# 263 Total Videos-4287

Model Structure

    translation_model = Sequential()
    translation_model.add(Input(shape=((20, 156))))
    translation_model.add(keras.layers.Masking(mask_value=0.))
    translation_model.add(BatchNormalization())
    translation_model.add(Bidirectional(LSTM(32, recurrent_dropout=0.2, return_sequences=True)))

    translation_model.add(Dropout(0.2))
    translation_model.add(Bidirectional(LSTM(32, recurrent_dropout=0.2)))

    translation_model.add(keras.layers.Activation('elu'))
    translation_model.add(Dense(32, use_bias=False, kernel_initializer='he_normal'))

    translation_model.add(BatchNormalization())
    translation_model.add(Dropout(0.2))
    translation_model.add(keras.layers.Activation('elu'))
    translation_model.add(Dense(32, kernel_initializer='he_normal',use_bias=False))

    translation_model.add(BatchNormalization())
    translation_model.add(keras.layers.Activation('elu'))
    translation_model.add(Dropout(0.2))
    translation_model.add(Dense(len(list(expression_mapping.keys())), activation='softmax'))
    isl_translator=ISLSignPosTranslator(bodypose_25_model(),handpose_model(), translation_model)

Total params: 82,679 (322.96 KB) Trainable params: 82,239 (321.25 KB) Non-trainable params: 440 (1.72 KB)

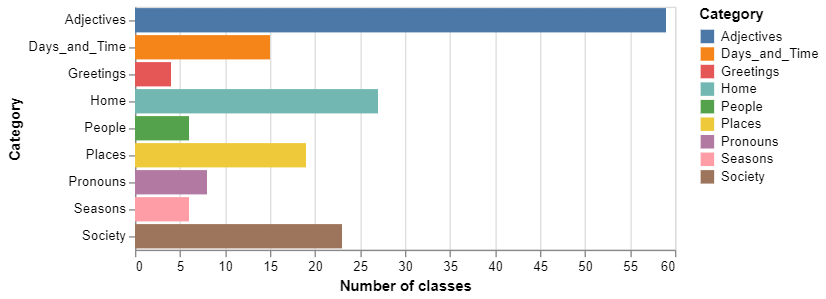

Videos processed per category

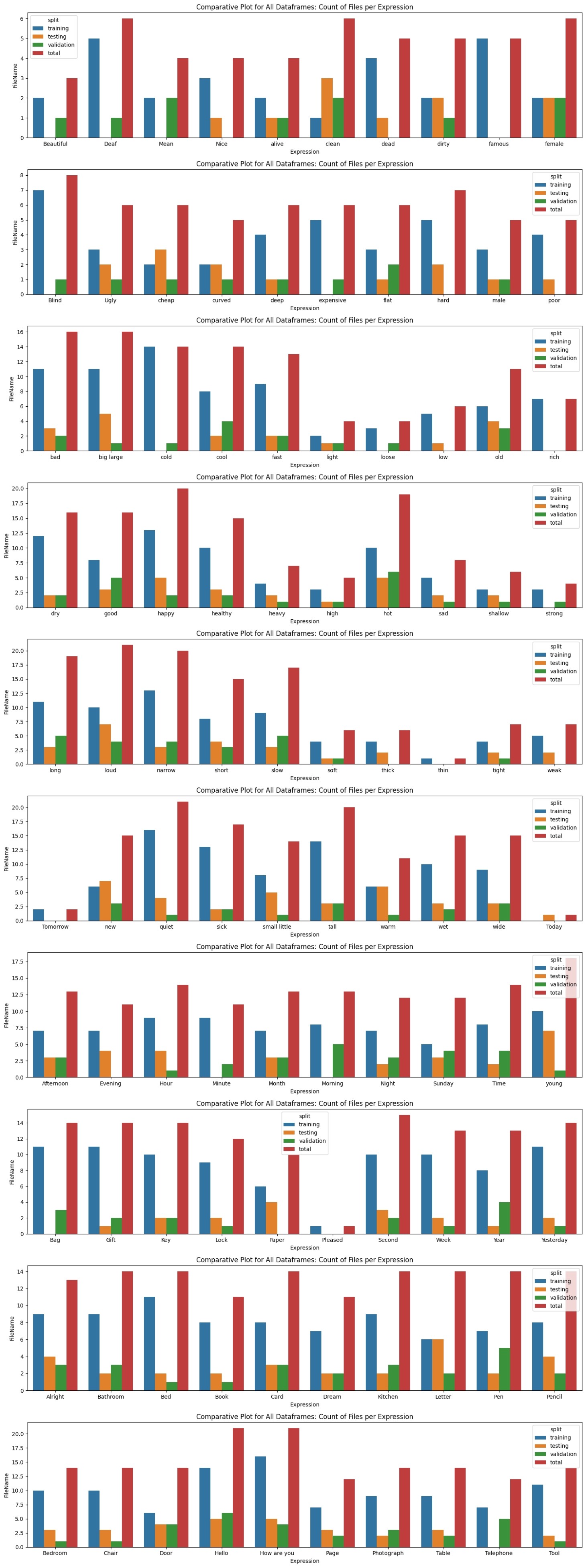

Videos count per label

Tensorboard training stats

🔗 Tensorboard

Features

  • Real-time inference on live webcam or uploaded videos
  • Works offline once the model is loaded in the browser via TensorFlow.js
  • Custom vocabulary: you can retrain on your own signs by supplying new CSV keypoint trajectories

Future Expansion

  • We need to use Transformer instead of LSTM to avoid exploding and diminishing gradient problems
  • This model can be enhanced further using more data, Door Darshan has huge dataset of news published for sign language translation, we are planning to request the same from Govt of India
